Hydrogen Decrepitation Furnace in Rare-Earth Magnet Recycling

Introduction

Rare-earth magnets, particularly neodymium-iron-boron (NdFeB) magnets, are critical components in modern technologies, including electric vehicles, wind turbines, and consumer electronics. Their high magnetic strength and energy efficiency make them indispensable in various applications. However, the increasing demand for these magnets has led to concerns about the sustainability of rare-earth elements (REEs), which are often mined in environmentally damaging ways. Recycling rare-earth magnets offers a sustainable solution to mitigate these issues. Among the various recycling techniques, hydrogen decrepitation (HD) has emerged as a promising method for recovering rare-earth elements from end-of-life magnets. This paper explores the role of hydrogen decrepitation furnaces in the recycling process, detailing the principles, mechanisms, and advantages of this technology.

The Need for Rare-Earth Magnet Recycling

Rare-earth elements are finite resources, and their extraction is associated with significant environmental and geopolitical challenges. Mining operations often result in habitat destruction, water pollution, and the generation of radioactive waste. Additionally, the supply of REEs is concentrated in a few countries, leading to potential supply chain vulnerabilities. Recycling rare-earth magnets can reduce the reliance on primary mining, conserve resources, and minimize environmental impacts. Moreover, recycling can recover valuable materials such as neodymium, dysprosium, and praseodymium, which are essential for high-performance magnets.

Hydrogen Decrepitation: An Overview

Hydrogen decrepitation is a process that utilizes hydrogen gas to break down rare-earth magnets into a fine powder. This process is based on the principle that certain metals, including neodymium, can absorb hydrogen, leading to the expansion and subsequent fragmentation of the material. The HD process is particularly effective for NdFeB magnets, which are composed of a hard magnetic phase (Nd2Fe14B) and a neodymium-rich grain boundary phase. When exposed to hydrogen, the neodymium-rich phase absorbs hydrogen, causing the material to crack and disintegrate into a powder.

The Hydrogen Decrepitation Furnace

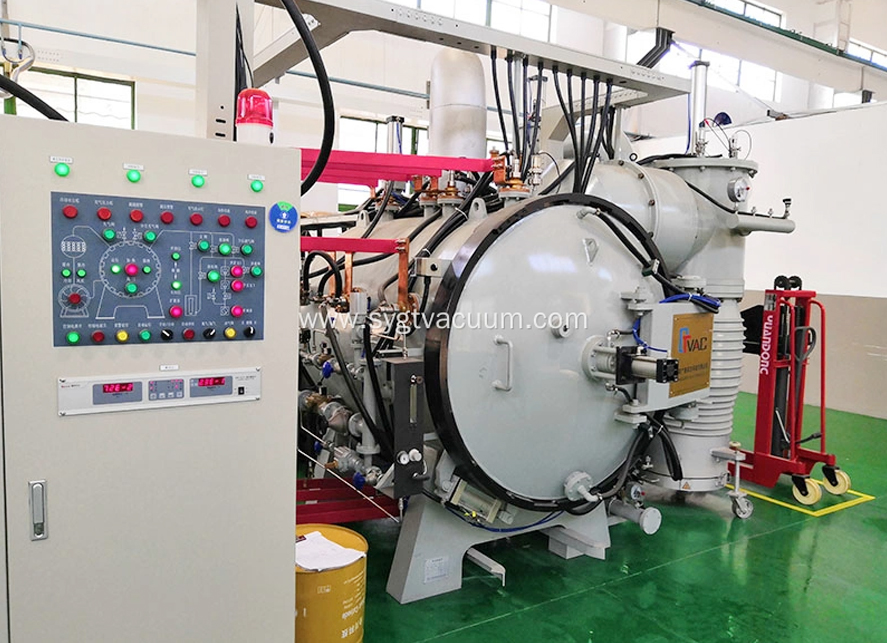

The hydrogen decrepitation furnace is a specialized piece of equipment designed to facilitate the HD process. It consists of a sealed chamber where the magnets are exposed to hydrogen gas at elevated temperatures. The furnace is equipped with temperature and pressure control systems to ensure optimal conditions for hydrogen absorption and decrepitation. The key components of a hydrogen decrepitation furnace include:

1. Reaction Chamber: The reaction chamber is a sealed vessel where the magnets are placed. It is designed to withstand high pressures and temperatures, ensuring the safe and efficient operation of the HD process.

2. Heating System: The furnace is equipped with a heating system, typically using electric resistance heaters, to raise the temperature of the magnets. The temperature is carefully controlled to promote hydrogen absorption without causing excessive oxidation or other undesirable reactions.

3. Hydrogen Gas Supply: A controlled supply of hydrogen gas is introduced into the reaction chamber. The gas is typically of high purity to avoid contamination and ensure effective decrepitation.

4. Pressure Control System: The pressure inside the reaction chamber is monitored and controlled to maintain the optimal conditions for hydrogen absorption. The pressure is usually maintained at a level that promotes the absorption of hydrogen by the neodymium-rich phase.

5. Cooling System: After the decrepitation process, the furnace is equipped with a cooling system to lower the temperature of the reaction chamber and the resulting powder. This prevents further reactions and ensures the stability of the powder.

Mechanism of Hydrogen Decrepitation

The hydrogen decrepitation process involves several stages, each of which is critical to the successful recovery of rare-earth elements from the magnets.

1. Hydrogen Absorption: When the magnets are exposed to hydrogen gas at elevated temperatures, the neodymium-rich grain boundary phase absorbs hydrogen. This absorption leads to the formation of neodymium hydride (NdHx), which causes the material to expand.

2. Cracking and Fragmentation: The expansion of the neodymium-rich phase generates internal stresses within the magnet, leading to the formation of cracks. As the cracks propagate, the magnet disintegrates into a fine powder. The size of the powder particles depends on the initial microstructure of the magnet and the conditions of the HD process.

3. Hydrogen Desorption: After the decrepitation process, the powder is subjected to a desorption step, where the absorbed hydrogen is removed. This is typically achieved by heating the powder in a vacuum or inert atmosphere. The desorption step is crucial to ensure that the recovered powder is free from hydrogen and can be used in subsequent processing steps.

Advantages of Hydrogen Decrepitation in Rare-Earth Magnet Recycling

The hydrogen decrepitation process offers several advantages over other recycling methods, making it a preferred choice for the recovery of rare-earth elements from end-of-life magnets.

1. High Efficiency: The HD process is highly efficient in breaking down the magnets into a fine powder, which can be easily processed to recover the rare-earth elements. The process is rapid and can be completed in a relatively short time.

2. Selective Decrepitation: The HD process selectively targets the neodymium-rich phase, leaving the hard magnetic phase largely intact. This selectivity simplifies the subsequent separation and recovery of the rare-earth elements.

3. Minimal Environmental Impact: Unlike some chemical recycling methods, the HD process does not involve the use of harsh chemicals or generate hazardous waste. The process is relatively clean and environmentally friendly.

4. Scalability: The hydrogen decrepitation furnace can be scaled up to handle large quantities of magnets, making it suitable for industrial-scale recycling operations. The process can be automated, reducing the need for manual labor and increasing throughput.

5. Versatility: The HD process can be applied to a wide range of rare-earth magnets, including those with different compositions and microstructures. This versatility makes it a valuable tool for recycling various types of magnets.

Challenges and Limitations

Despite its advantages, the hydrogen decrepitation process is not without challenges and limitations.

1. Safety Concerns: The use of hydrogen gas poses safety risks, as it is highly flammable and can form explosive mixtures with air. Proper safety measures, including leak detection and ventilation systems, must be in place to mitigate these risks.

2. Oxidation: The HD process must be carefully controlled to prevent the oxidation of the rare-earth elements. Oxidation can reduce the quality of the recovered powder and complicate subsequent processing steps.

3. Energy Consumption: The HD process requires significant energy input, particularly for heating and maintaining the reaction chamber at elevated temperatures. This can increase the overall cost of the recycling process.

4. Residual Hydrogen: The desorption step must be carefully managed to ensure that all absorbed hydrogen is removed from the powder. Residual hydrogen can affect the properties of the recovered material and limit its usability.

Applications of Recovered Rare-Earth Elements

The rare-earth elements recovered through the hydrogen decrepitation process can be used in various applications, including the production of new magnets, catalysts, and phosphors. The recovered neodymium, dysprosium, and praseodymium can be reintroduced into the supply chain, reducing the demand for primary mining and contributing to a more sustainable and circular economy.

1. Magnet Production: The recovered rare-earth elements can be used to produce new NdFeB magnets, which are essential for high-performance applications such as electric motors, generators, and magnetic resonance imaging (MRI) machines.

2. Catalysts: Rare-earth elements are used as catalysts in various chemical processes, including petroleum refining and automotive exhaust treatment. The recovered elements can be used to produce catalysts, reducing the need for virgin materials.

3. Phosphors: Rare-earth elements are used in the production of phosphors for lighting and display technologies. The recovered elements can be used to produce phosphors for energy-efficient lighting and high-quality displays.

Future Prospects

The hydrogen decrepitation process is expected to play an increasingly important role in the recycling of rare-earth magnets as the demand for these materials continues to grow. Advances in furnace design, process optimization, and safety measures are likely to enhance the efficiency and scalability of the HD process. Additionally, the integration of hydrogen decrepitation with other recycling techniques, such as hydrometallurgical processing, could further improve the recovery rates and purity of the rare-earth elements.

Conclusion

The hydrogen decrepitation furnace is a critical tool in the recycling of rare-earth magnets, offering a sustainable and efficient method for recovering valuable rare-earth elements. The HD process leverages the unique properties of hydrogen to break down magnets into a fine powder, which can be easily processed to recover neodymium, dysprosium, and praseodymium. Despite some challenges, the hydrogen decrepitation process is a promising solution to the growing demand for rare-earth elements and the need for sustainable recycling practices. As technology advances, the hydrogen decrepitation furnace is likely to become an integral part of the rare-earth magnet recycling industry, contributing to a more sustainable and circular economy.
