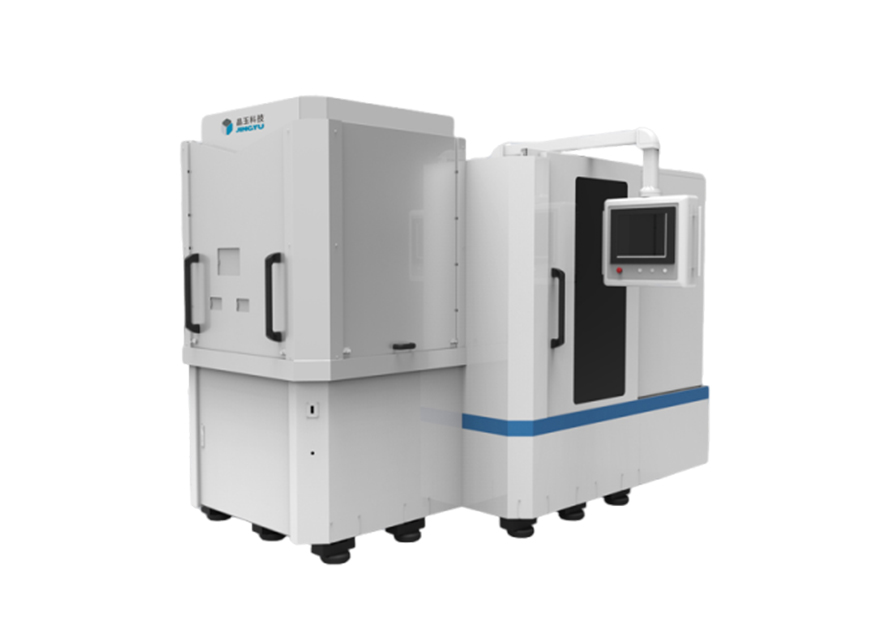

1. Introduction to Multi Wire Cutting Machine

A Multi Wire Cutting Machine is designed to achieve high precision cutting with minimal human intervention. The machine typically uses multiple tensioned wires that cut through material simultaneously, allowing parallel production and consistent dimensions. It is widely used in industries such as:

• Metal fabrication

• Stone and marble processing

• Electronic component manufacturing

• Composite material cutting

• Tool and die making

Core Components Include:

• Multi-wire cutting head

• High-tension wire spools

• Servo-controlled wire feed system

• CNC or PLC control panel

• Cooling and lubrication system

• Material support fixtures for alignment and stability

2. Specifications and Model Variants

Multi Wire Cutting Machines are available in several models to meet different production requirements. Key specifications include cutting capacity, wire tension, motor power, and control system.

2.1 Popular Models

2.2 Key Features

1. Simultaneous Multi-Wire Cutting – Cuts multiple pieces at the same time to improve throughput.

2. High Precision – ±0.1 mm tolerance ensures consistent quality.

3. Automated Wire Feed – Reduces downtime for manual wire adjustments.

4. Advanced Cooling System – Maintains wire integrity and prevents overheating.

5. User-Friendly Interface – Programmable cutting sequences for complex operations.

3. Product Parameter Table

The following table summarizes the technical parameters that define the machine's capabilities and limitations:

4. Daily Maintenance and Inspection

Regular maintenance ensures the machine operates efficiently, reduces downtime, and extends wire life.

4.1 Daily Checklist

4.2 Weekly Maintenance

• Inspect motor belts and pulleys for wear.

• Verify wire tension calibration.

• Clean the wire guides and rollers.

• Test all limit switches and safety interlocks.

4.3 Monthly Maintenance

• Conduct a full system inspection, including motors, bearings, and sensors.

• Check for alignment of wire frames and support fixtures.

• Replace worn or damaged components to ensure accuracy.

5. Operational Tips and Best Practices

Proper operation is crucial for precision and efficiency. The following tips help optimize performance:

5.1 Pre-Operation Guidelines

• Verify the machine is level and securely anchored.

• Check wire condition and tension before each shift.

• Ensure the cooling system is functioning properly.

• Program the cutting sequence according to material specifications.

5.2 Cutting Tips

1. Use Appropriate Wire Diameter – Select the wire size based on material hardness.

2. Maintain Optimal Wire Tension – Avoid under-tension to prevent inaccurate cuts; over-tension may break wires.

3. Adjust Cutting Speed – Softer materials allow faster cutting; hard materials require slower feed rates.

4. Monitor Wire Temperature – Cooling fluid reduces overheating and extends wire lifespan.

5. Minimize Material Movement – Secure workpieces to prevent vibrations and misalignment.

5.3 Safety Considerations

• Always wear protective gloves and safety glasses.

• Avoid touching wires while in motion.

• Do not bypass safety interlocks.

• Ensure emergency stop buttons are functional and accessible.

6. Conclusion

The Multi Wire Cutting Machine is a vital tool for industries requiring high precision, efficiency, and parallel production capabilities. Its combination of multi-wire design, advanced control systems, and robust maintenance protocols ensures superior performance and consistent quality.

Key Takeaways:

• Simultaneous multi-wire cutting reduces production time and waste.

• Daily and weekly maintenance preserves wire integrity and machine lifespan.

• Model variants cater to different sizes and industrial applications.

• Operational tips ensure safety and maximize cutting efficiency.
